Possible problems with spunk are most easily identified and solved by posting a spunk log to the spunk thread.

Required knowledge:
Passable skill in reading xml syntax and Bethesda's xml elements, see here.

Some parts require some experience writing an MCM script.

Introduction: what to expect

What this guide will focus on is how to create your own HUD readout to reflect a number that you set in an esp, much like the primary needs readout that you'd expect from mods like oHUD and IMCNNV. The method I'll follow is to slowly build up a mod that I've made for this purpose, called Hygiene, so you can follow along. You'll find it attached, as well as a copy of all scripts inside.

Building up from the simplest method and gradually adding functionalities, you'll learn to add both a percentage readout (text) and a visual meter/bar (image). Along the way you'll learn about subscribing UI components to UIO, passing information from geck script to xml, and writing a script to allow your users to manually adjust the positioning of your HUD component.

1. Baby steps: a bit of text

1.1. Objective: a HUD for Hygiene.esp



Let's assume we have a little mod called Hygiene.esp that calculates and adjusts the player's hygiene levels as time passes. Actually, we do have it, I wrote it just to have something to refer to. Here's its main script, calculating a number that I wish to display in HUD eventually:



In the good old Fallout tradition, we'll call the stat "Hygiene" but assume that the higher the value is, the worse off the player is. In the same way that "more H2O" means "thirstier", high Hygiene has you reaching critical values, going into the red, something like that. You may see from the script that it basically just adds up a number as time passes, depending on what the player's doing and how long it should take to reach 100 normally, all variables that are set in MCM.

What I want to display, in the HUD, is simply a percentage, and a bit of text saying what it signifies, something like:
HYG: 10%



1.2. Subscribing to UIO

Let's get started. First off, in case you didn't know, when it comes to adding something to the HUD we can't just plunk a new file in some folder. There is only one .xml file that handles hud and it's called hud_main_menu.xml, located under menus\main. In the past, adding anything to it in a mod obviously invited conflicts with other mods trying to do the same. A workaround using the <include> element had the disadvantage of not being user-friendly, and the uHUD mod which automated that process required its author to update it whenever a new HUD mod was published.



All a thing of the past now that with UIO the conflicts are resolved and it'll automatically recognize our hud component if:

- we create an .xml file for it in a folder under menus\prefabs

- we create a text file in a folder called uio\public that notifies UIO that we have an .XML file that needs to be appended to the main hud, with this bit of code in it:

DSHyg\DSHygHUD.xml::HUDMainMenutrue



1.3. Adding text elements

With that out of the way, let's open our .xml file. We're going to split "HYG: 10%" into 3 bits: the label, the value, and the percent sign. After all, while HYG: (the label) and the percent sign are bits of text that won't change, the value is something we will expect to receive from the .esp.

Now's also a good time to group those 3 elements in one element because we'll go a little crazy with repositioning and jacking into other hud mods in later chapters. Because we also still need a root element to contain everything that'll be in our xml we're looking at an overall structure like this, for the moment: a root, with our 'own hud' components grouped together underneath.

<rect name="DSHygHUDROOT">
  <rect name="DSHygOwnHUD" >
    <text name="DSHygLabel">
    </text>

    <text name="DSHygPercentSign">
    </text>

    <text name="DSHygValueDisplay">
    </text>
  </rect>
</rect>

If you've read my guide on reading XML, you should realize that this main structure only contains object elements, adding 3 text components, grouped under one invisible rectangle. What's lacking is what text they should display, and where on our screen they should be positioned. Let's add some properties, starting with the  strings.

<text name="DSHygLabel">
  <string>HYG:</string>
</text>

<text name="DSHygPercentSign">
  <string>%</string>
</text>

 The strings that aren't dynamic are simply put between <string> tags. The one that is, the actual value to display, will be phoned in by my main script in the .esp, where this line

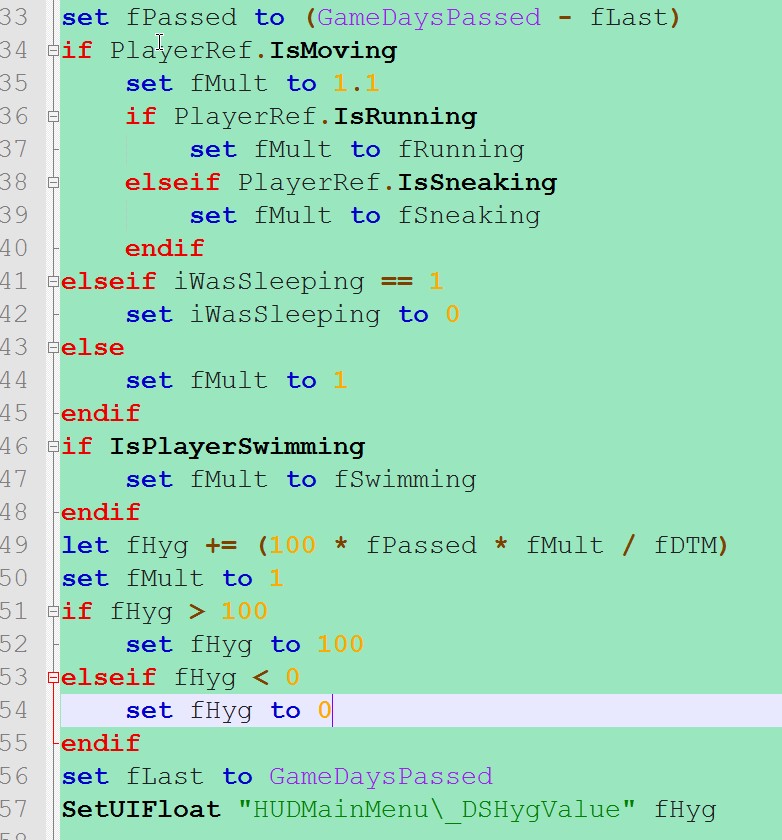

    SetUIFloat "HUDMainMenu\_DSHygValue" fHyg

sets a custom property element, _DSHygValue, to the value. What's left for us to do in the xml is read it from that element, using the <copy> operator with the "io()" src attribute:

<text name="DSHygValueDisplay">
  <copy src="io()" trait="_DSHygValue"/>
</text>

2. Positioning



Right now, this is what our xml looks like:

<rect name="DSHygHUDROOT">
  <rect name="DSHygOwnHUD" >
    <text name="DSHygLabel">
      <string>HYG:</string>
    </text>
    <text name="DSHygPercentSign">
      <string>%</string>
    </text>
    <text name="DSHygValueDisplay">
      <copy src="io()" trait="_DSHygValue"/>
    </text>
  </rect>
</rect>

At present, in-game, all three text components would start displaying, except they'd all be stuck in the top-left corner, because we haven't entered positioning data yet. Let's handle that, by first setting a position for their parent rectangle:

<rect name="DSHygOwnHUD" >
  <locus> &true; </locus>
  <x>
    <copy src="screen" trait="width" />
    <sub> 150 </sub>
  </x>
  <y>
    <copy src="screen" trait="height" />
    <div> 2 </div>
  </y>
  <!--our three text components are still here-->
</rect>

Copying the width of the screen and subtracting some pixels, I place it to the right of the screen, and in the middle in terms of height.



Because we're going to fine-tune the positioning of the individual text elements in a minute, now's a good time to also toggle on the <locus> element, which'll treat x & y positioning of the children as relative to the parent rectangle, rather than to the screen. That's just my preference. With locus toggled on, I choose not to specify any positioning for the label's text component, so it just copies its x & y position from the parent. However, I do outline it to the left with the <justify> element:


<text name="DSHygLabel">
  <justify> &left; </justify>
  <string> HYG: </string>
</text>

I'll outline the other two to the right because I want the value to stay neatly close to the percent sign, and this is easier that way. The other elements share the same y-position, but I shift the percent sign more to the right (+ 100 x, relative to the parent), and do the same for the value display by copying the x-position of the percent sign, minus the width of the percent sign itself:

<text name="DSHygPercentSign">
  <x>100</x>
  <justify> &right; </justify>
  <string>%</string>
</text>

<text name="DSHygValueDisplay">
  <x>
    <copy src="sibling(DSHygPercentSign)" trait="x" />
    <sub src="sibling(DSHygPercentSign)" trait="width" />
  </x>
  <y>
    <copy src="sibling(DSHygLabel)" trait="y" />
  </y>
  <justify> &right; </justify>
  <string>
    <copy src="io()" trait="_DSHygValue" />
  </string>
</text>

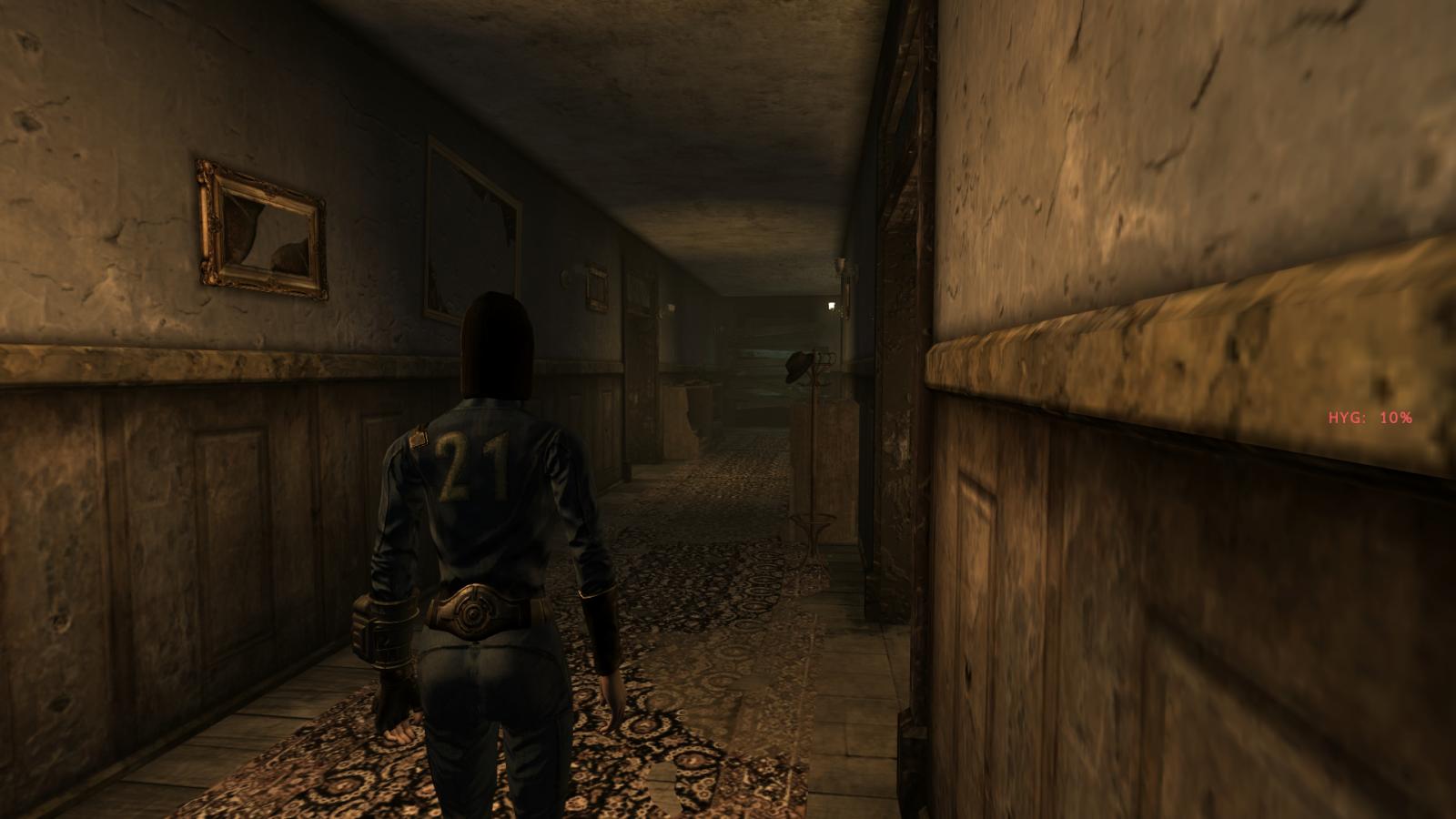

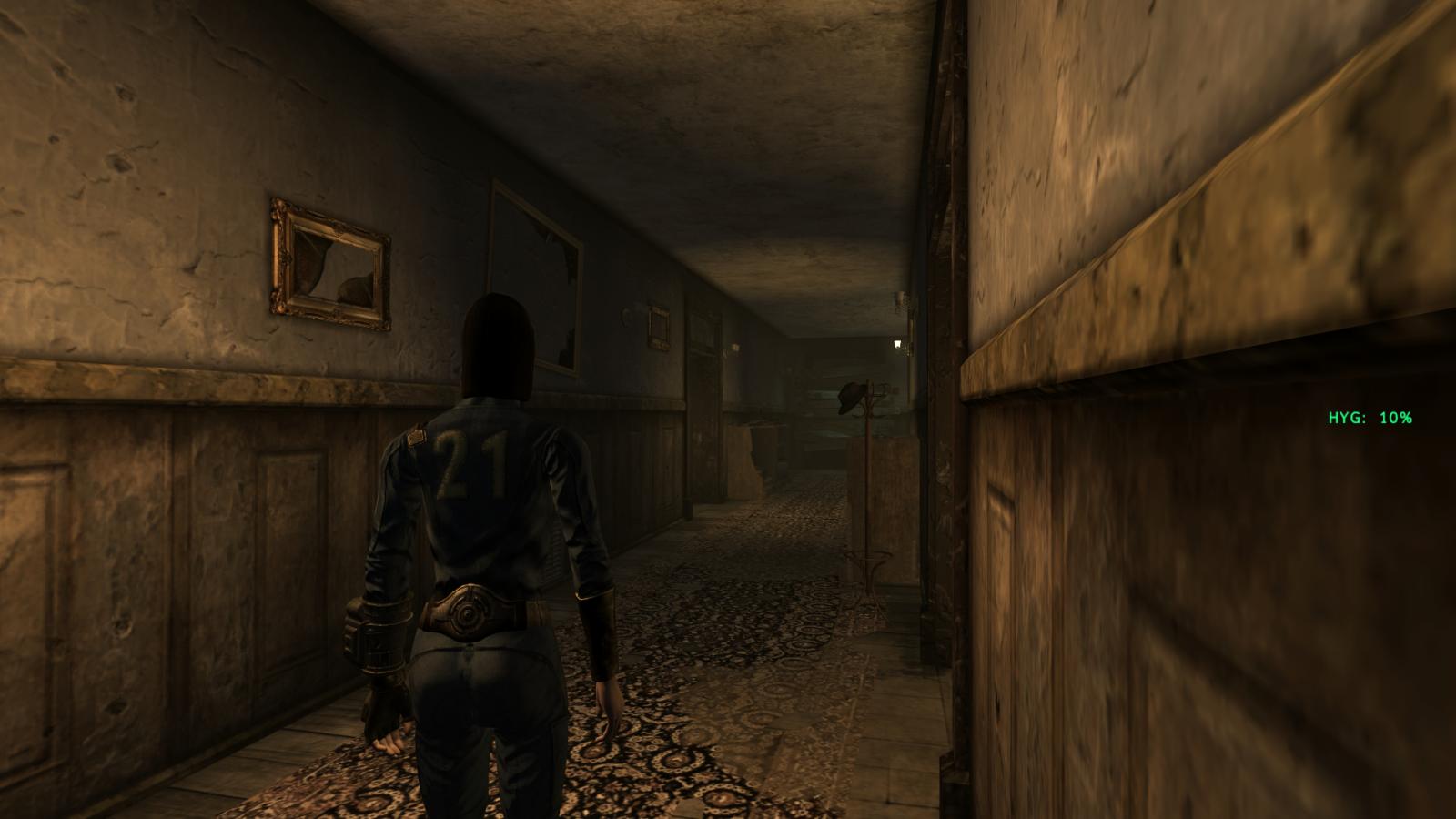

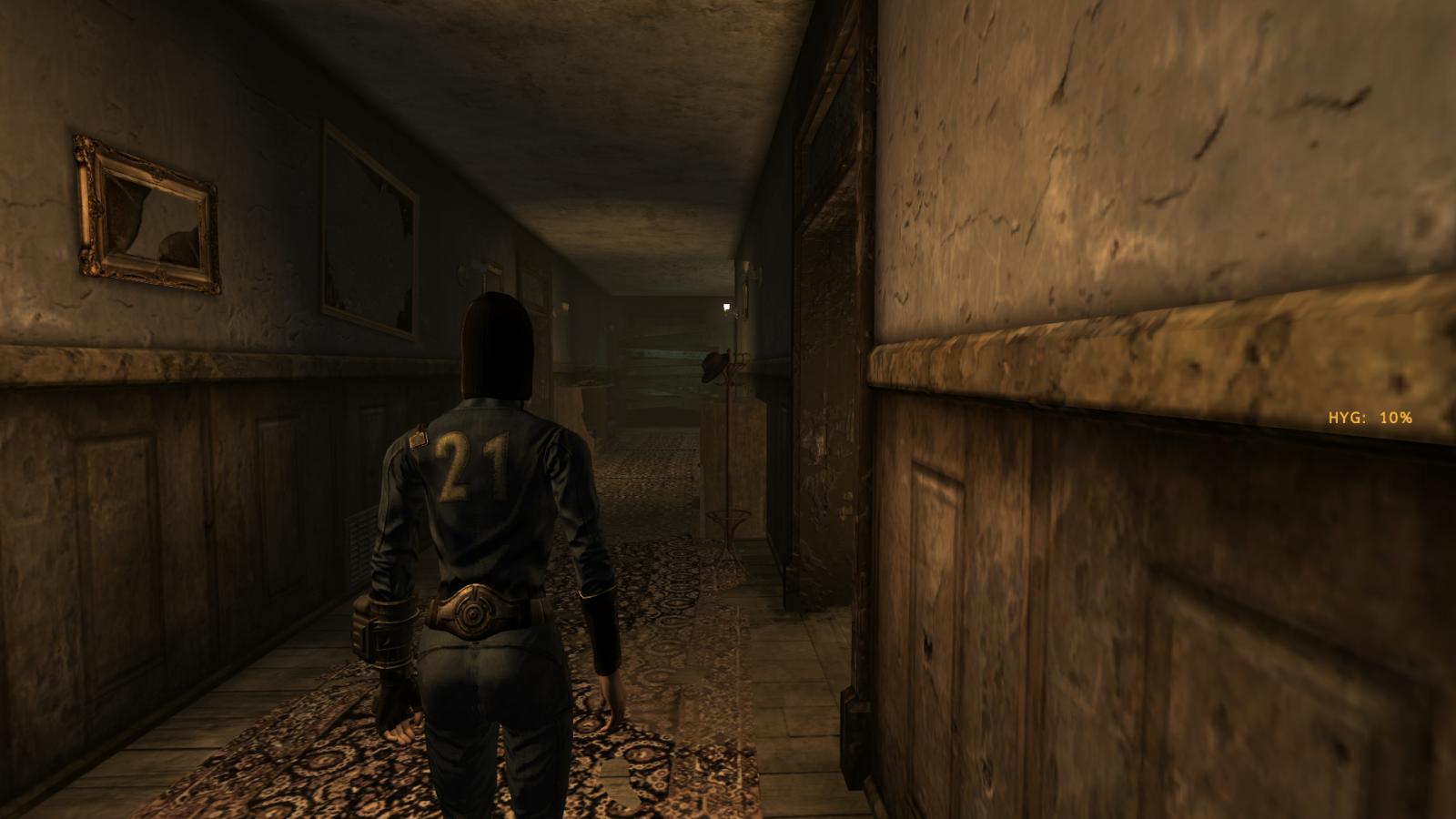

Which results in this, in-game:



A good start. I could've achieved the same result in many other ways, really. You can position components relative to the screen or each other using a variety of formulas - what I used was just one of the simpler methods.



3. Toggling visibility

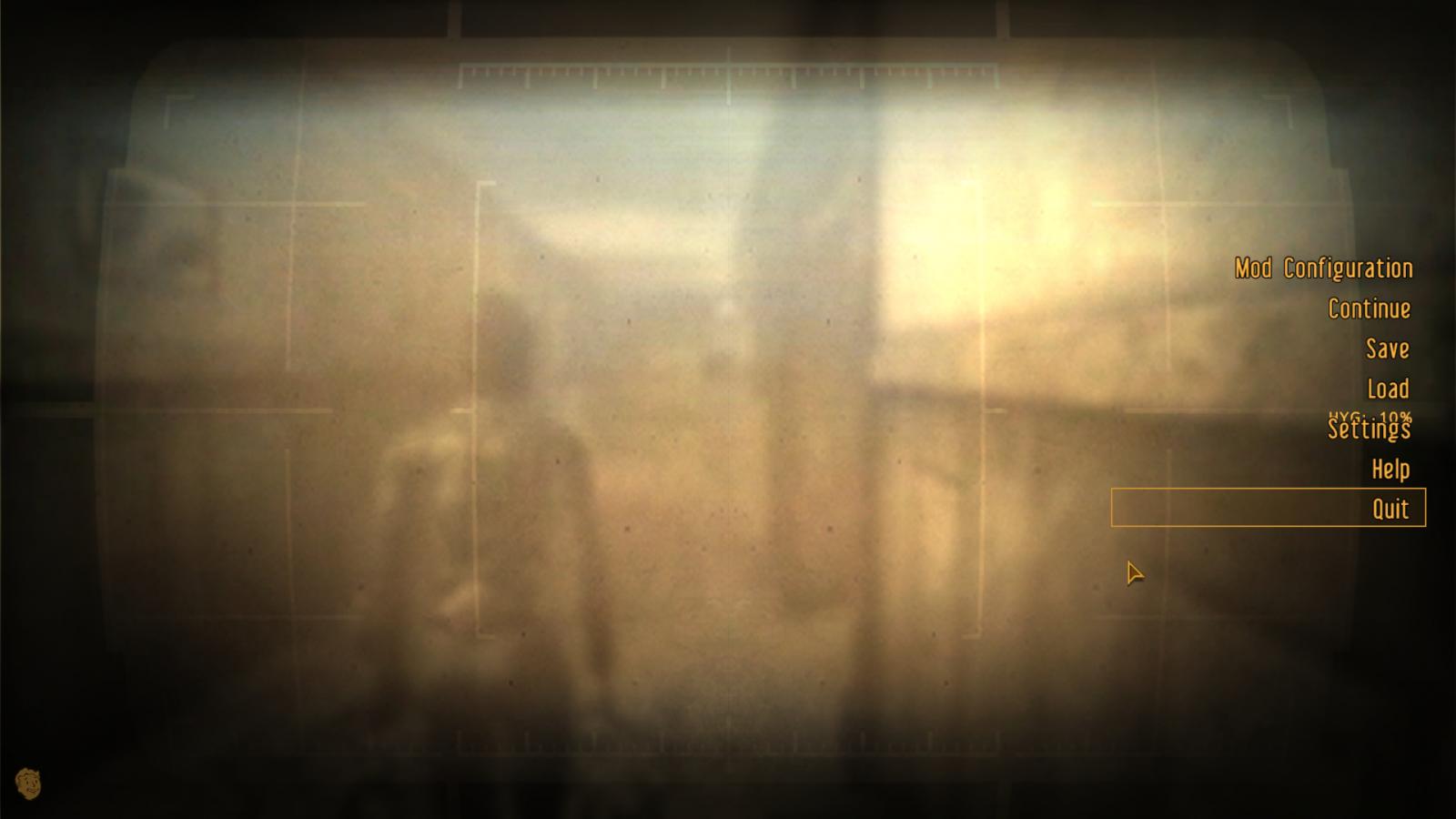

We may've gotten our little percentage HUD to display in gamemode, as planned, but as you can see from the following picture, it also shows in menumode.



I don't want that, it's going to detract from whatever I try to do there, so it's gotta go. There are also situations where we may not even want it to show in gamemode - in combat, for instancee. Handling that winds down to the same technique: toggling visibility using a custom property.

Remember our rectangle parent that groups the three text components? In itself, it's invisible, but if we toggle its visibility, it toggles that of all its children. So let's do that, by making its visibility dependent on a custom property:

<rect name="DSHygOwnHUD">
  <visible>
    <copy src="io()" trait="_DSHygOwnHud" />
  </visible>
  <locus> &true; </locus>
  <x>
    <copy src="screen" trait="width" />
    <sub> 150 </sub>
  </x>
  <y>
    <copy src="screen" trait="height" />
    <div> 2 </div>
  </y>
  <!--our three text components are still here-->
</rect>

while in our esp, I made a separate little quest script that just does this, for the moment:

scn DSHygHUDQstScpt

Begin GameMode

SetUIFloat "HUDMainMenu\_DSHygOwnHud" 1

End

Begin MenuMode

SetUIFloat "HUDMainMenu\_DSHygOwnHud" 0

End

You can easily add more conditions in the esp's script. For instance, to make our little HUD disappear during combat, you'd go:

Begin GameMode

if playerref.IsInCombat
	SetUIFloat "HUDMainMenu\_DSHygOwnHud" 0
else
	SetUIFloat "HUDMainMenu\_DSHygOwnHud" 1
endif

End

Finally, maybe we should toggle off our HUD in situations where vanilla HUD is also off, perhaps in some type of cutscene or other... Usually, this is done by simply making the visibility of the HUD dependent on the visibility of the "ActionPoints" HUD component:

<rect name="DSHygOwnHUD">
  <visible>
    <copy src="ActionPoints" trait="visible"/>
    <and src="io()" trait="_DSHygOwnHud" />
  </visible>
  <!--everything else-->
</rect>

(Note that a mod like iHUD which makes the ActionPoints component visually disappear under certain conditions, doesn't touch the visibility state of it: it'll still be on. Conditions that really switch it off include situations that use DisablePlayerControls.) On the other hand, we may want to provide an option to force our HUD to stay on despite the usual HUD being off. In that case we toggle the state of a new custom property in our esp:

<rect name="DSHygOwnHUD">
  <visible>
    <copy src="ActionPoints" trait="visible"/>
    <or src="io()" trait="_DSHygForceHud" />
    <and src="io()" trait="_DSHygOwnHud" />
  </visible>
  <!--everything else-->
</rect>

scn DSHygHUDQstScpt

int iForceHUD

Begin GameMode

SetUIFloat "HUDMainMenu\_DSHygOwnHud" 1
SetUIFloat "HUDMainMenu\_DSHygForceHud" iForceHUD

End

Begin MenuMode

SetUIFloat "HUDMainMenu\_DSHygOwnHud" 0

End

Forcing it on can then happen through script on special occasions, or as a player preference in MCM, which is what I'm adding in our little mod: a checkbox that toggles the iForceHUD variable there.



4. Letting the player adjust position In addition to not overriding vanilla menus, we obviously want to be good neighbors with other hud mods. The best way of doing that is to provide players with the option to manually reposition our HUD component themselves in case of conflict. Some mods let you do this in MCM's menumode; we'll do it in gamemode instead.



4.1 Adding custom properties for x and y offsets



First off, we're in luck because we decided to group our components under one rectangle, so we really need to only be able to adjust that one's position. In fact, that was a major reason for doing that in the first place, or what did you think. We add new custom properties to our rectangle's existing x & y elements, conveniently called _DSHygX and _DSHygY:

<rect name="DSHygOwnHud">
  <!--visibility intel here-->
  <locus> &true; </locus>
  <x>
    <copy src="screen" trait="width" />
    <sub> 150 </sub>
    <add src="io()" trait="_DSHygX" />
  </x>
  <y>
    <copy src="screen" trait="height" />
    <div> 2 </div>
    <add src="io()" trait="_DSHygY" />
  </y>
  <!-- everything else-->
</rect>

The idea is that both custom properties will reflect variables, now held in our regular HUD script, that are added to or subtracted from depending on keys that the player presses.

scn DSHygHudQstScpt

int iForceHudfloat
fOffsetXfloat
fOffsetY

Begin GameMode

SetUIFloat "HUDMainMenu\_DSHygOwnHud" 1
SetUIFloat "HUDMainMenu\_DSHygForceHud" iForceHud
SetUIFloat "HudMainMenu\_DSHygX" fOffsetX
SetUIFloat "HudMainMenu\_DSHygY" fOffsetY

End

Begin MenuMode

SetUIFloat "HUDMainMenu\_DSHygOwnHud" 0

End

In order to properly catch those key presses we need a rather fast-firing script, so let's make that separate from our others, toggle it on through MCM, and off when we're done.



4.2. Detecting and storing key presses



There are two ways of accomplishing this. One is writing the adjustment script so that people can do it right in the MCM menu, but that itself can interfere with visibility and doesn't always show the other HUD components that may get in the way so you have to go in and out to adjust some more. The other is doing it in gamemode. The trouble there is that most keypresses already mean something, especially the movement controls which I'd like to use. Still, all things considered, option 2 is what we'll go with here - perfectly feasible if we tie up the player a little bit. First off, the entire quest needs toggled via MCM. Here's one way of doing that.



In my MCM script:

; 'reset' block
SetUIFloat "StartMenu/MCM/*:1/*:9/_enable" 1
SetUIString "StartMenu/MCM/*:1/*:9/_title" "Configure HUD position"
SetUIFloat "StartMenu/MCM/*:1/*:9/_type" 5
SetUIFloat "StartMenu/MCM/*:1/*:9/_value" DSHygHud.iEditing
; 'default' block
set DSHygHud.iEditing to 0
; 'new value' block
elseif iOption == 9
	set DSHygHud.iEditing to fValue
endif
; 'mouseover' block
elseif iMouseover == 9
	SetUIString "StartMenu/MCM/*:9/string" "Go back to gamemode to start moving the HUD around"
endif

In my DSHygHud quest script:

int iEditing

if iEditing
	set DSHygHudConfig.iStage to 0
	startquest DSHygHudConfig
	if GetQuestRunning DSHygHudConfig
		set iEditing to 0
	endif
endif

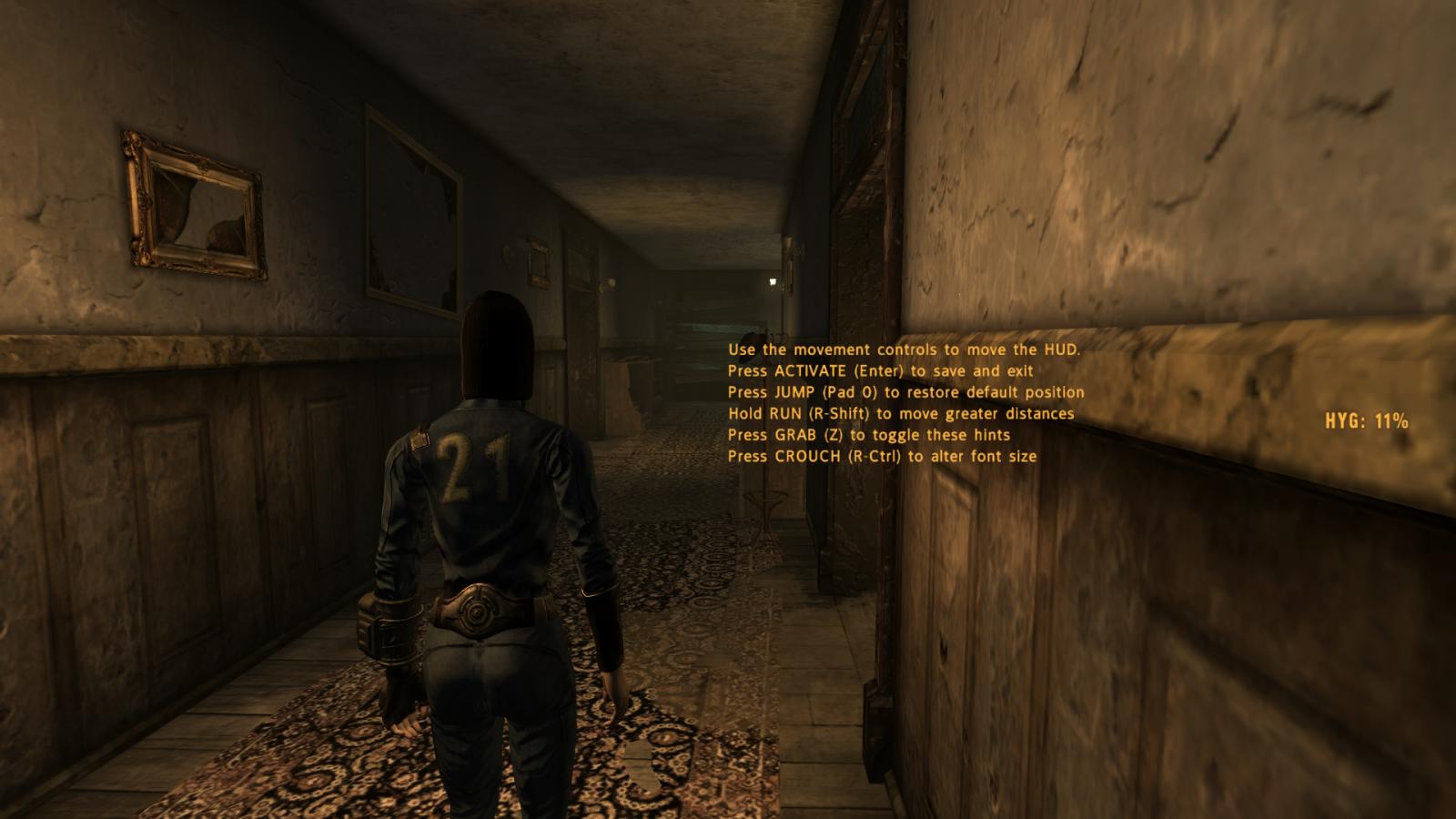

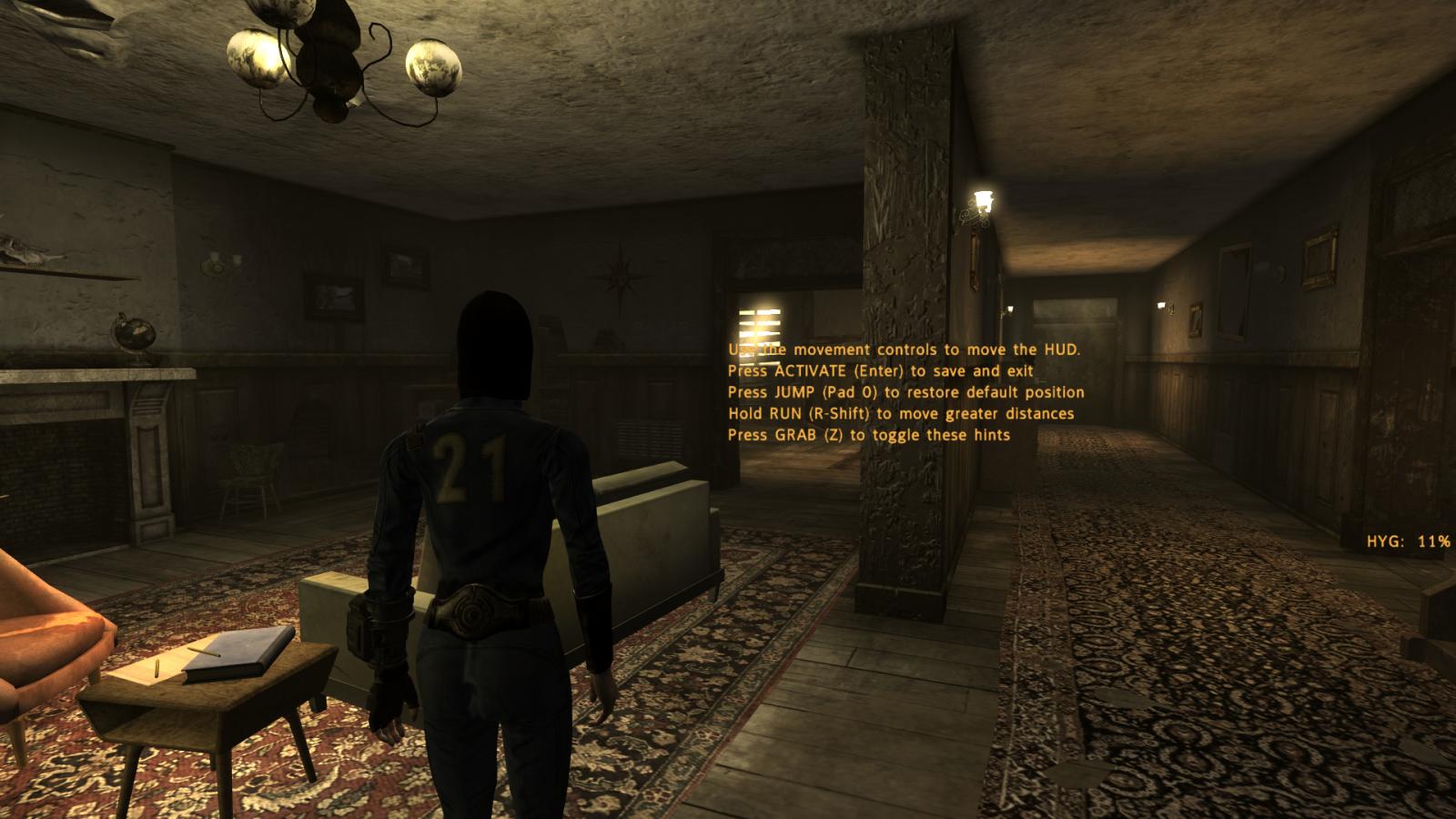

Since we want to be able to let players manipulate position using their usual movement controls, we need to - restrain the player character so that our keypresses don't move them around - capture the relevant keypresses and store them as offsets in local variables to the regular hud quest - broadcast the offsets to the xml, where our custom properties, _DSHygX and _DSHygY, are waiting to be read. The following quest script does that. Try to follow along. In stage 0, it forces the HUD on in case it was off for some reason, and restrains the player. In stage 1, it detects the pressing of controls and takes action accordingly, increasing and decreasing offsets that we broadcast as the custom properties _DSHygX and DSHygY to our xml. Stage 100 cleans up, setting the player free and stopping the script.

scn DSHygHudConfigQstScpt

int iGap
int iStage
int iWasForced

Begin GameMode

if playerref.IsInCombat
	set iStage to 100
endif
if iStage == 0
	if Playerref.GetRestrained
		set iStage to 1
		SetUIFloat "HUDMainMenu\_DSHygOwnHud" 1
		if 0 == GetQuestRunning DSHygHUD
			startquest DSHygHUD
		endif
		if DSHygHUD.iForceHUD == 0
			set DSHygHUD.iForceHud to 1
			set iWasForced to 1
		endif
	else
		playerref.SetRestrained 1
		return
	endif
endif
if iStage == 1
; how much to move
	if IsControlPressed 9 ; 'run' control
		set iGap to 50
	else
		set iGap to 5
	endif
; forward = up
	if IsControlPressed 0
		let DSHygHUD.fOffSetY -= iGap
; backward = down
	elseif IsControlPressed 1
		let DSHygHud.fOffSetY += iGap
	endif
	SetUIFloat "HUDMainMenu\_DSHygY" DSHygHud.fOffsetY
; left = left
	if IsControlPressed 2
		let DSHygHUD.fOffSetX -= iGap
; right = right
	elseif IsControlPressed 3
		let DSHygHUD.fOffSetX += iGap
	endif
	SetUIFloat "HUDMainMenu\_DSHygX" DSHygHud.fOffsetX
; activate = save and exit
	if IsControlPressed 5
		set iStage to 100
; jump = restore defaults
	elseif IsControlPressed 12
		set DSHygHUD.fOffSetX to 0
		set DSHygHUD.fOffSetY to 0
		set iStage to 0
	endif
endif
; quit
if iStage == 100
	if iWasForced
		set DSHygHud.iForceHud to 0
	endif
	SetUIFloat "HUDMainMenu\_DSHygOwnHud" 0
	if playerref.GetRestrained
		playerref.SetRestrained 0
	else
		stopquest DSHygHudConfig
	endif
endif

End

4.3. Showing text hints on-screen



One thing missing though is a little user-friendliness: people don't know which keys to press unless we tell them. A readme is fine and dandy but everybody knows people don't read them, so let's tell them which buttons to press in-game by adding some more text to our xml. First off, let's create a new rectangle, sibling to "DSHygOwnHUD", that'll group our new text elements and toggle the visibility of them all with a custom property.

<rect name="DSHygPositionTips">
  <visible>
    <copy src="io()" trait="_DSHygShowHints" />
  </visible>
  <text name="DSHygTipsMove">
  </text>
  <text name="DSHygTipsActivate">
  </text>
  <text name="DSHygTipsJump">
  </text>
  <text name="DSHygTipsRun">
  </text>
  <!-- we'll add a new control to check as well: 'grab' will toggle the hints -->
  <text name="DSHygTipsGrab">
  </text>
</rect>

We add a bit of code to toggle the hints when the grab control is pressed to our HudConfig script:

if iStage == 1
; the other stuff
	elseif IsControlPressed 27
		if 0 == IsPressed
			set isPressed to 1
			if 0 == GetUIFloat "HUDMainMenu\_DSHygShowHints"
				SetUIFloat "HUDMainMenu\_DSHygShowHints" 1
			else
				SetUIFloat "HUDMainMenu\_DSHygShowHints" 0
			endif
		endif
	else
		set isPressed to 0
	endif

We'll need a few textual elements to describe which keys to press. People know the movement ones, so they can go in a static string in the xml:

<text name="DSHygTipsMove">
  <string> Use the movement keys to move the HUD </string>
</text>

We'll construct the other strings in our HUD config quest script using GetControl to figure out which keys belong to which controls, broadcast them with SetUIStringEx and the %k format specifier, and turn on the visibility of the whole block by default:

if iStage == 0
	if playerref.GetRestrained
		; other stuff
		set iKeyCode to GetControl 5
		SetUIStringEX "HUDMainMenu\_DSHygTipActivate" "Press ACTIVATE (%k) to save and exit" iKeyCode
		set iKeyCode to GetControl 12
		SetUIStringEX "HUDMainMenu\_DSHygTipJump" "Press JUMP (%k) to restore default position" iKeyCode
		set iKeyCode to GetControl 27
		SetUIStringEx "HUDMainMenu\_DSHygTipGrab" "Press GRAB (%k) to toggle these hints" iKeyCode
		set iKeyCode to GetControl 9
		SetUIStringEX "HUDMainMenu\_DSHygTipRun" "Hold RUN (%k) to move greater distances" iKeyCode
		SetUIFloat "HUDMainMenu\_DSHygShowHints" 1
		; other stuff

and copy them in our xml, putting them underneath each other somewhere in the middle of the screen:

<rect name="DSHygPositionTips">
  <visible>
    <copy src="io()" trait="_DSHygShowHints" />
  </visible>
  <locus> &true; </locus>
  <x>
    <copy src="screen()" trait="width"/>
    <div> 2 </div>
  </x>
  <y> 400 </y>
  <text name="DSHygTipsMove">
    <string> Use the movement controls to move the HUD. </string>
  </text>
  <text name="DSHygTipsActivate">
    <y> 25 </y>
    <string>
      <copy src="io()" trait="_DSHygTipActivate" />
    </string>
  </text>
  <text name="DSHygTipsJump">
    <y> 50 </y>
    <string>
      <copy src="io()" trait="_DSHygTipJump" />
    </string>
  </text>
  <text name="DSHygTipsRun">
    <y> 75 </y>
    <string>
      <copy src="io()" trait="_DSHygTipRun" />
    </string>
  </text>
  <text name="DSHygTipsGrab">
    <y> 100 </y>
    <string>
      <copy src="io()" trait="_DSHygTipGrab" />
    </string>
  </text>
</rect>

which has this result:





5. Intermezzo: More layout



5.1 adjusting fonts



It's entirely possible you think the standard font is too small, and you wish the HUD component to jump out a little bit more. It's also entirely possible that unlike me you don't use Darn's UI mod, which makes the fonts smaller, and I haven't really checked if the positioning data I used work equally well with vanilla's fonts. Being able to switch between whichever fonts you have in your game could help players out in both cases, if there's a readability problem. We're in luck because whether you have font overrides or not in your game, they're numbered 1-8, so all it really takes is to stipulate in the .xml, for each text component, that we'll copy that number from the esp, using another custom property:

<font>
  <copy src="io()" trait="_DSHYGFont" />
</font>

A simple solution, then, would be to broadcast this in our HUD quest script, tied to a variable:

SetUIFloat "HUDMainMenu\_DSHygFont" iFont

and let players set that variable with an MCM scale.



Another option is to tack on this bit to our positioning config script to have players switch it in real time when they're positioning it:

; crouch key = change font size
elseif IsControlPressed 8
	if 0 == IsPressed
		let isPressed := 1
		if DSHygHUD.iFont < 8
        	let DSHygHud.iFont += 1
        else
            let DSHygHud.iFont := 1
        endif
    endif

as well as constructing the string:

set iKeyCode to GetControl 8
SETUIStringEX "HUDMainMenu\_DSHygTipCrouch" "Press the Pipboy Key (%k) to alter font size" iKeycode

and putting that in our xml:

<text name="DSHygTipsCrouch">
  <y> 100 </y>
  <string>
    <copy src="io()" trait="_DSHygTipCrouch" />
  </string>
</text>



5.2. adjusting opacity



At the moment we don't yet have a way for players to disable our HUD if they want to make a screenshot or something. And perhaps, at full opacity, some may found our hud component to be just a little too intrusive. Let's kill two birds with one stone and provide a way to adjust the component's opacity. In this case, we opt for an MCM slider - it's just the more sensible thing to do. Opacity goes from 0 to 255, so that'll be the range for our MCM slider too, tied to yet another variable that we broadcast from our main HUD quest script to our xml: In our xml:

<alpha>
  <copy src="io()" trait="_DSHygAlpha" />
</alpha>

In our main hud quest:

SetUIFloat "HUDMainMenu\_DSHygAlpha" iAlpha

With these entries in our MCM menu:

; reset block
SetUIFloat "StartMenu/MCM/*:1/*:10/_enable" 1
SetUIString "StartMenu/MCM/*:1/*:10/_title" "Set HUD opacity"
SetUIFloat "StartMenu/MCM/*:1/*:10/_type" 2
SetUIFloat "StartMenu/MCM/*:1/*:10/_value" DSHygHud.iAlpha
; default block
set DSHygHud.iAlpha to 255
; new value block
elseif iOption == 10
	set DSHygHud.iAlpha to fValue
; show scale block
elseif iOption == 10
	SetUIFloat "StartMenu/MCM/_Value" DSHygHud.iAlpha
	SETUIFloat "StartMenu/MCM/_ValueDecimal" 3
	SetUIFloat "StartMenu/MCM/_ValueIncrement" 5
	SetUIFLoat "StartMenu/MCM/_ValueMax" 255
	SetUIFloat "StartMenu/MCM/_ValueMin" 0
	SetUIString "StartMenu/MCM/*:2/_title" "Hud opacity"
; default scale block
elseif iOption == 10
	SetUIFloat "StartMenu/MCM/_Value" 255



5.3. adjusting color



FNV's amber is nice and dandy, but perhaps TTW players would prefer a shiny, sickly green, and maybe someone else a bright pink, and who are we to deny that to them, really?

After all, we have <red>, <green> and <blue> property elements, and the four standard colors for HUD have the following RGB values:

amber - 255, 182, 66

blue - 46, 207, 255

green - 26, 255, 128

white - 197, 255, 255

Something tells me we can create a 'list' in MCM that has those names, as well as a custom option, tied to a variable in our HUD quest script:

int iColorOption
int iRed
int iGreen
int iBlue

if iColorOption == 1 ; amber
	SetUIFloat "HUDMainMenu\_DSHygRed" 255
	SetUIFloat "HUDMainMenu\_DSHygGreen" 182
	SetUIFloat "HUDMainMenu\_DSHygBlue" 66
elseif iColorOption == 2 ; blue values go under here
elseif iColorOption == 3 ; green values here
elseif iColorOption == 4 ; white values here
elseif iColorOption == 5 ; custom
	SetUIFloat "HUDMainMenu\_DSHygRed" iRed
	SetUIFloat "HUDMainMenu\_DSHygGreen" iGreen
	SetUIFloat "HUDMainMenu\_DSHygBlue" iBlue
endif

In our xml, we detach our text elements from their usual color scheme by saying we don't want to use the regular system color, and we add <red>, <green> and <blue> property elements to each text element:

<systemcolor> &nosystemcolor; </systemcolor>
<red>
  <copy src="io()" trait="_DSHygRed" />
</red>
<green>
  <copy src="io()" trait="_DSHygGreen" />
</green>
<blue>
  <copy src="io()" trait="_DSHygBlue" />
</blue>

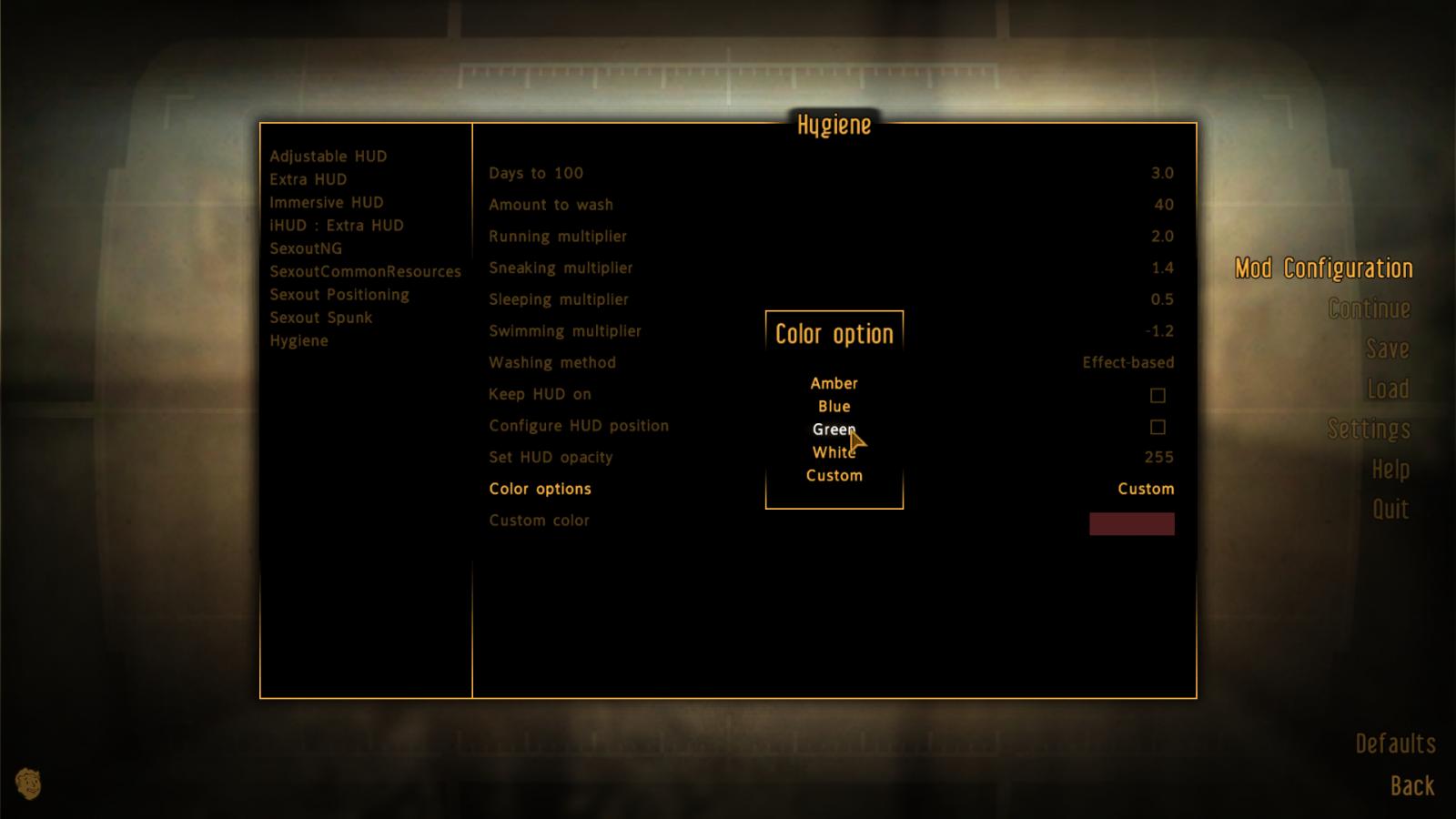

Our MCM, meanwhile gets expanded with the following list code:

; reset block
SetUIFloat "StartMenu/MCM/*:1/*:11/_enable" 1
SetUIString "StartMenu/MCM/*:1/*:11/_title" "Color options"
SetUIFloat "StartMenu/MCM/*:1/*:11/_type" 1
SetUIFloat "StartMenu/MCM/*:1/*:11/_value" DSHygHud.iColorOption
if DSHygHud.iColorOption == 1
	SetUIString "StartMenu/MCM/*:1/*:11/value/*:1/string" "Amber"
elseif DSHygHud.iColorOption == 2
	SetUIString "StartMenu/MCM/*:1/*:11/value/*:1/string" "Blue"
elseif DSHygHud.iColorOption == 3
	SetUIString "StartMenu/MCM/*:1/*:11/value/*:1/string" "Green"
elseif DSHygHud.iColorOption == 4
	SetUIString "StartMenu/MCM/*:1/*:11/value/*:1/string" "White"
elseif DSHygHud.iColorOption == 5
	SetUIString "StartMenu/MCM/*:1/*:11/value/*:1/string" "Custom"
endif
; default block
set DSHygHud.iColorOption to 1
; new value block
elseif iOption == 11
	set DSHygHud.iColorOption to fValue
; list block
elseif iOption == 11
	SetUIString "StartMenu/MCM/*:3/_title" "Color option"
	SetUIFloat "StartMenu/MCM/*:3/*:1/_enable" 1
	SetUIFloat "StartMenu/MCM/*:3/*:2/_enable" 1
	SetUIFloat "StartMenu/MCM/*:3/*:3/_enable" 1
	SetUIFloat "StartMenu/MCM/*:3/*:4/_enable" 1
	SetUIFloat "StartMenu/MCM/*:3/*:5/_enable" 1
	SetUIString "StartMenu/MCM/*:3/*:1/text/string" "Amber"
	SetUIString "StartMenu/MCM/*:3/*:2/text/string" "Blue"
	SetUIString "StartMenu/MCM/*:3/*:3/text/string" "Green"
	SetUIString "StartMenu/MCM/*:3/*:4/text/string" "White"
	SetUIString "StartMenu/MCM/*:3/*:5/text/string" "Custom"

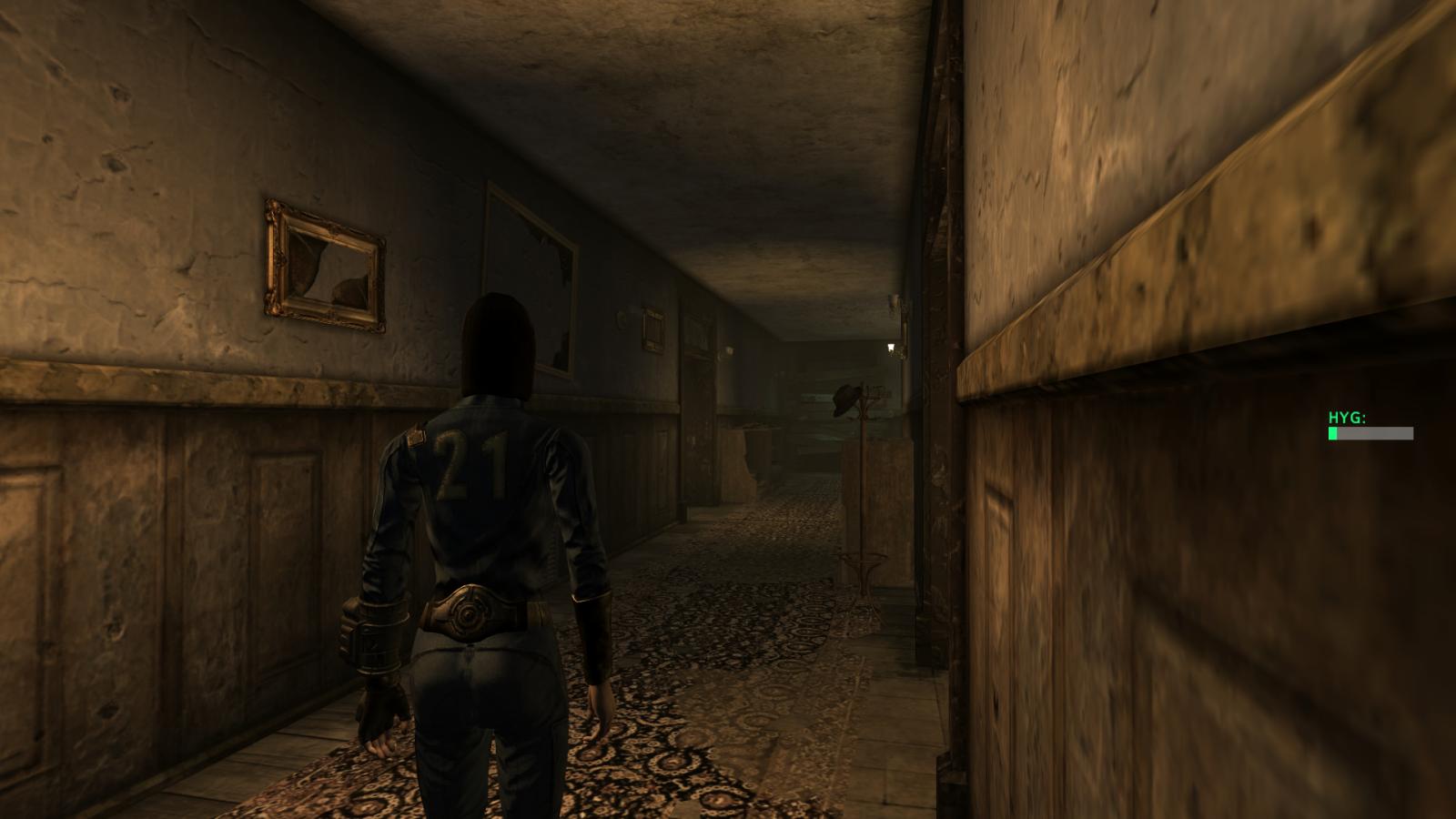

Which gets me a nice sickly green when I choose that in-game:

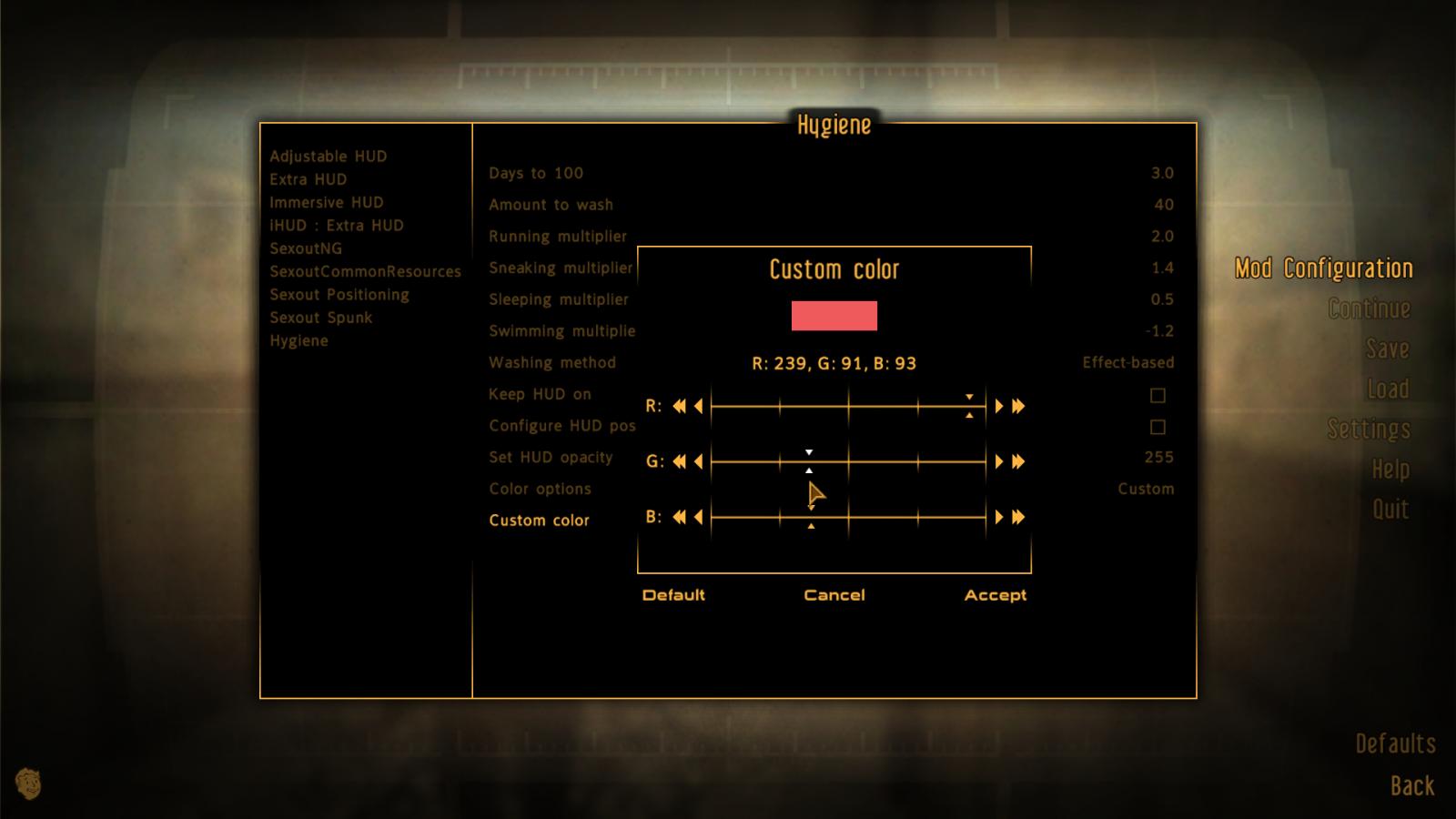

Of course, why stop there. We can also use MCM's handy type-9 option to let people enter any RGB value they like. When were you ever going to use it otherwise, honestly? Take care though that the MCM documentation has a mistake in it, where it says to use SetUIStringEX where you really should use SetUIFloat. Let's also make this option dependent on our 'custom' option in the list:

; reset block
if DSHygHud.iColorOption == 5
	SetUIFloat "StartMenu/MCM/*:1/*:12/_enable" 1
else
	SetUIFloat "StartMenu/MCM/*:1/*:12/_enable" 2
endif
SetUIString "StartMenu/MCM/*:1/*:12/_title" "Custom color"
SetUIFloat "StartMenu/MCM/*:1/*:12/_type" 9
SetUIFloat "StartMenu/MCM/*:1/*:12/_value1" DSHygHud.iRed
SetUIFloat "StartMenu/MCM/*:1/*:12/_value2" DSHygHud.iGreen
SetUIFloat "StartMenu/MCM/*:1/*:12/_value3" DSHygHud.iBlue
; default block
set DSHygHud.iRed to 255
set DSHygHud.iGreen to 182
set DSHygHud.iBlue to 66
; new value block:
elseif iOption == 12
	set DSHygHud.iRed to GetUIFloat "StartMenu/MCM/_Value1"
	set DSHygHud.iGreen to GetUIFloat "StartMenu/MCM/_Value2"
	set DSHygHud.iBlue to GetUIFloat "StartMenu/MCM/_Value3"
; showscale block:
elseif iOption == 12
	SetUIFloat "StartMenu/MCM/_Value1" DSHygHud.iRed
	SetUIFloat "StartMenu/MCM/_Value2" DSHygHud.iGreen
	SetUIFloat "StartMenu/MCM/_Value3" DSHygHud.iBlue
	SetUIString "StartMenu/MCM/*:2/_title" "Custom color"
; defaultscale block
elseif iOption == 12
	SetUIFloat "StartMenu/MCM/_Value1" 255
	SetUIFloat "StartMenu/MCM/_Value2" 182
	SetUIFloat "StartMenu/MCM/_Value3" 66

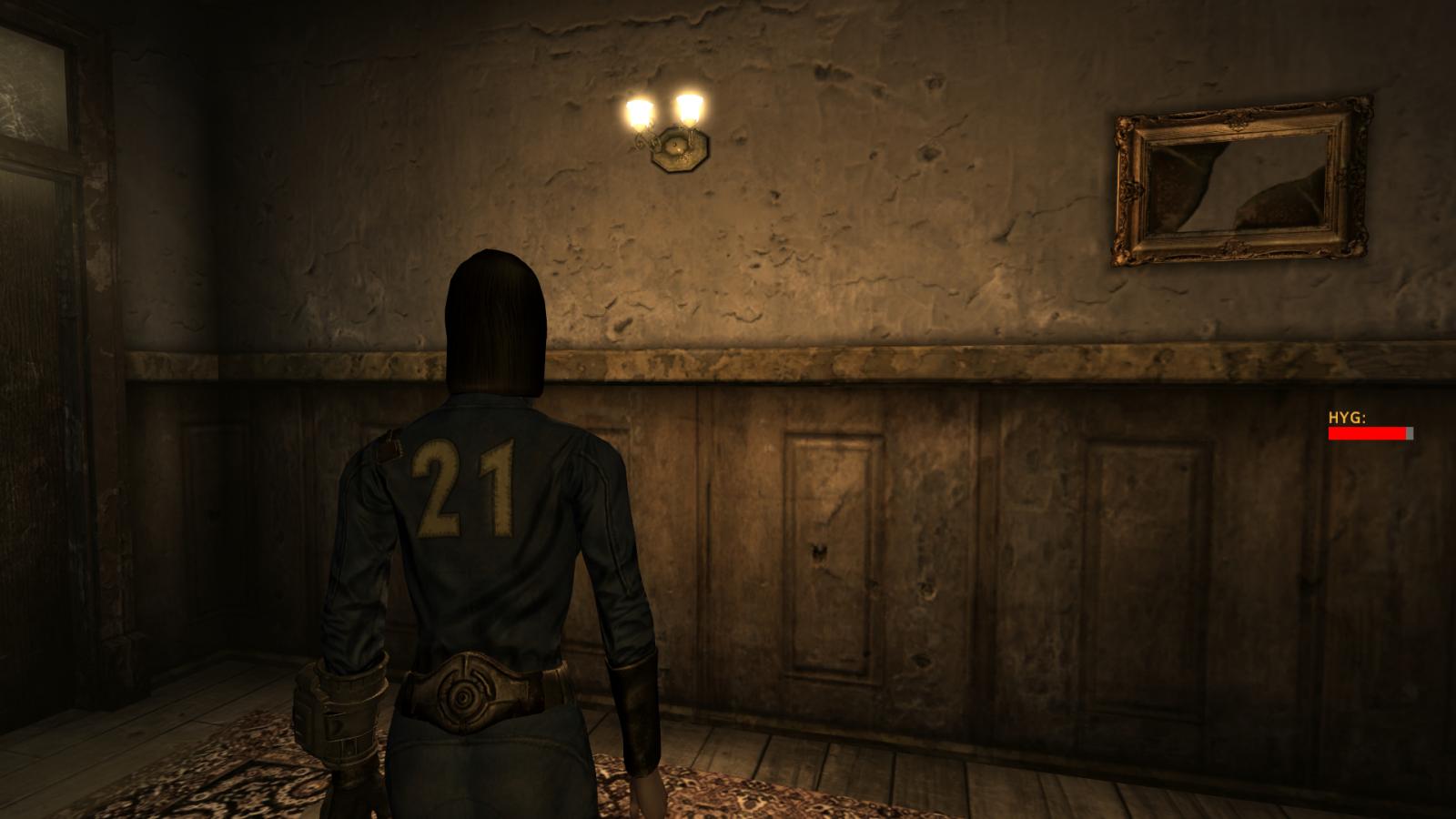

  Which has me pick this gooey pink for our color:







6.  Adding a meter or bar



Instead of a dry percentage readout, maybe some would prefer a meter or bar displaying just how filthy we are. If we are to provide the option via another MCM toggle...

; reset block
SetUIFloat "StartMenu/MCM/*:1/*:13/_enable" 1
SetUIString "StartMenu/MCM/*:1/*:13/_title" "Use a bar"
SetUIFloat "StartMenu/MCM/*:1/*:13/_type" 5
SetUIFloat "StartMenu/MCM/*:1/*:13/_value" DSHygHud.iUseBar
; new value
elseif iOption == 13
	set DSHygHud.iUseBar to fValue

and broadcast the option to xml with another custom property...

if iUseBar
	SetUIFloat "HUDMainMenu\_DSHygBar" 1
else
	SetUIFloat "HUDMainMenu\_DSHygBar" 0
endif

then we'll need to stop displaying the percentage if bars are on:

<text name="DSHygPercentSign">
  <!--other stuff-->
  <visible>
    <copy src="io()" trait="_DSHygValue" />
    <gt>0</gt>
    <and>
      <copy src="io()" trait="_DSHygBar" />
      <eq>0</eq>
    </and>
  </visible>
  <!--other stuff-->
</text>
<!-- also do the same for DSHygValueDisplay -->

        Next up, we write outselves 2 image elements, under the same rectangle where we placed our text components, one for the background and the other to fill that in:

<rect name="DSHygOwnHUD">
  <!-- the other stuff-->
  <image name="DSHygBarBack">
  </image>
  <image name="DSHygBar">
  </image>
</rect>

Their visibility will need to depend on the 'use bars' option, and we'll use a simple solid texture from vanilla to fill up their surface area:

<image name="DSHygBarBack">
  <visible>
    <copy src="io()" trait="_DSHygBar" />
  </visible>
  <width>100</width>
  <height>15</height>
  <depth>2</depth>
  <y>20</y>
  <filename>Interface\Shared\solid.dds</filename>
</image>

  You can tell from above that I gave the background image a maximum width of 100 pixels. (You could obviously go for more, but then you'll have to convert the hygiene value too.) The image that will fill in the background, DSHygBar, will take its width from the value of fHyg in our main quest:

if iUseBar
	SetUIFloat "HUDMainMenu\_DSHygBar" 1
	SetUIFloat "HUDMainMenu\_DSHygBarWidth" DSHyg.fHyg
else
	SetUIFloat "HUDMainMenu\_DSHygBar" 0
endif

<image name="DSHygBar">
  <visible>
		<copy src="io()" trait="_DSHygBar" />
  </visible>
  <width>
    <copy src="io()" trait="_DSHygBarWidth" />
  </width>
  <height>15</height>
  <depth>3</depth>
  <y>20</y>
  <filename>Interface\Shared\solid.dds</filename>
</image>

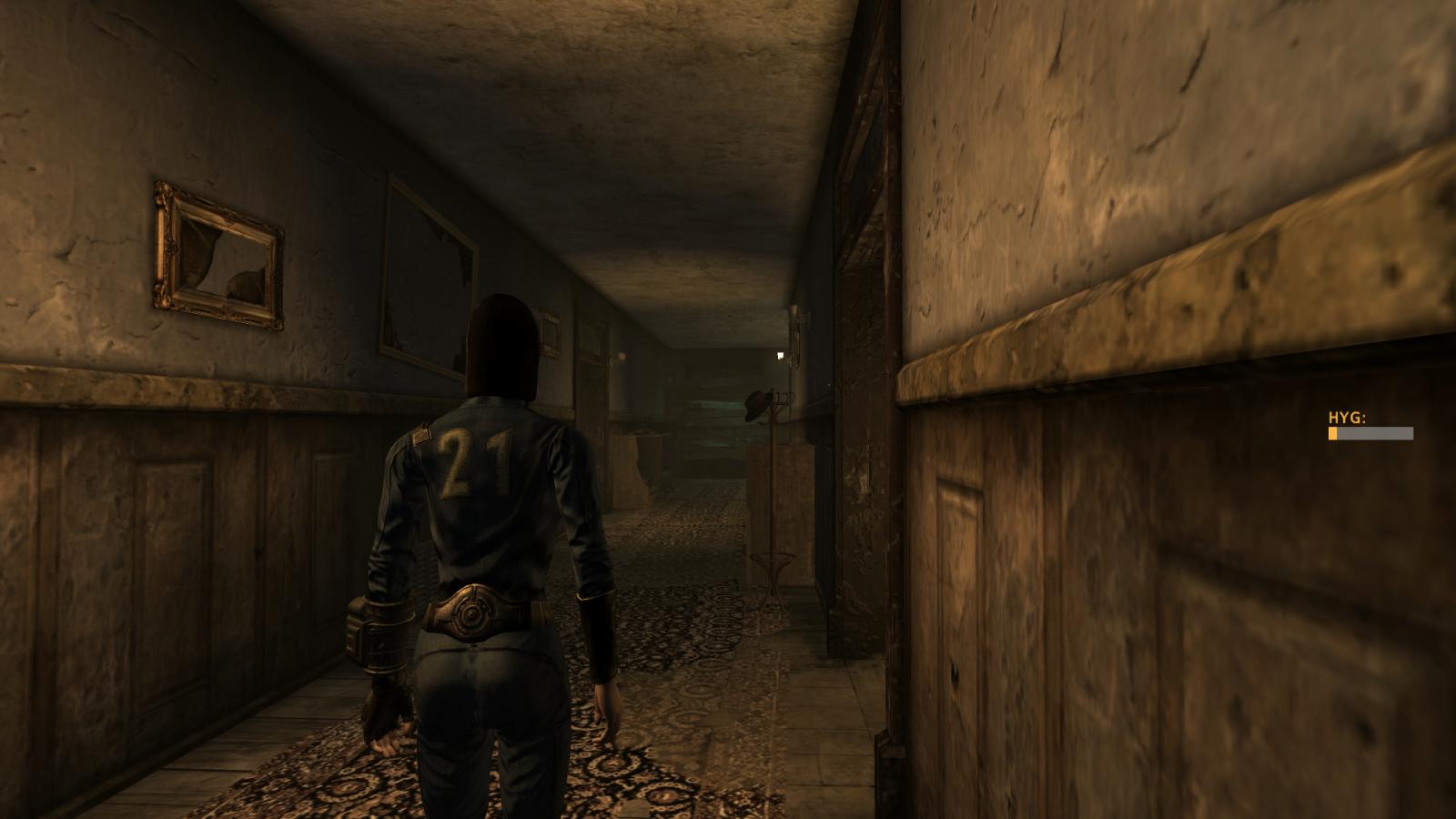

In order to provide contrast, I switch off the usual HUD  color on the background and paint it grey, setting its opacity at half of whatever the opacity value we hooked up to a variable earlier is. Also note that the actual bar has a higher <depth> value than that of the background, making sure that it's painted on top of it.

<image name="DSHygBarBack">
  <visible>
    <copy src="io()" trait="_DSHygBar" />
  </visible>
  <width>100</width>
  <height>15</height>
  <depth>2</depth>
  <y>20</y>
  <filename>Interface\Shared\solid.dds</filename>
  <systemcolor>&nosystemcolor;</systemcolor>
  <red>190</red>
  <green>190</green>
  <blue>190</blue>
  <alpha>
    <copy src="io()" trait="_DSHygAlpha" />
    <div>2</div>
  </alpha>
</image>

    Which gives us this result:

Why stop there. Now that we know you can adjust the color of images as well as text with the red, green & blue elements, we might as well give the bar the same color that is selected for the text element:

<image name="DSHygBar">
  <!-- other stuff-->
  <systemcolor>&nosystemcolor;</systemcolor>
  <red>
    <copy src="io()" trait="_DSHygRed" />
  </red>
  <green>
    <copy src="io()" trait="_DSHygGreen" />
  </green>
  <blue>
    <copy src="io()" trait="_DSHygBlue" />
  </blue>
  <!-- other stuff-->
</image>

And, why not, override it all with bright red if hygiene levels exceed a threshold value of 90:

<image name="DSHygBarOverride">
  <visible>
    <copy src="io()" trait="_DSHygBar" />
    <and>
      <copy src="io()" trait="_DSHygBarWidth" />
      <gt>90</gt>
    </and>
  </visible>
  <width>
    <copy src="io()" trait="_DSHygBarWidth" />
  </width>
  <height>15</height>
  <depth>4</depth>
  <y>20</y>
  <systemcolor>&nosystemcolor;</systemcolor>
  <red>255</255>
  <green>0</green>
  <blue>0</blue>
  <alpha> 255 </alpha>
  <filename>Interface\Shared\solid.dds</filename>
</image>


By this time, maybe you can figure out how to make it flash then too, using the visibility block and another custom property element turned on and off in our .esp somewhere?

Epilogue, credits

There are always different ways to achieve the same results we've booked by following this little guide, so do mess around with it once you're familiar with the basics. I've kept to the more straightforward approaches, relying heavily on setting custom properties in my esp, given that I'm no expert at all in this and am much more at home with geck script than Beth xml.

In the end parting advice is, as always, that if you're going to write some code like this, read what others have written first. I've based this on code I've seen in vanilla, what's explained in the Oblivion wiki, mods by Gopher, Impoftheperverse and JIP, and a small mod that Fallout2AM once made for me to explain some things.



hygiene mod.7z

Hygiene source.7z

To be fair, they started the dating thing regarding music by not including more contemporary songs, but it doesn't have to be that way and they are free to change the mix whenever they want to without it meaning anything. While Fallout pre-war society may have kept a lot of 50s styles, it did not actually blow up in the 50s, and tech wise they advanced way beyond us in terms of robotics, genetic engineering and nanotechnology as well as weaponry. If Maybe by the Ink Spots can exist in Fallout, so can Bangarang by Skrillex and Death Cult Armageddon by Dimmu Borgir. The alternative that no music at all was developed in 150 or so years is a lot more stupid, and the third option is for them to provide original music, which no one wants.



I figure in the DC area maybe Three-Dog found some musical archive that was just more well-preserved by the others, and in New Vegas it's mainly music that fit the casino and western styles. In both cases we have one man deciding what the wasteland gets to hear, Three-Dog in DC, Mr House almost certainly in Nevada, maybe this was just the musical tastes of these two men.



You put what you want in your game obviously, but I disagree entirely. Music reflects the society it's made in. The Fallout universe never experienced a counterculture and so it never knew Hendrix, punk, or metal. This makes perfect sense to me. Techno... who knows - I just can't see it happening when you still had cars with fins driving around.



In my Fallout songverse, "Try Me" by James Brown could've been played. "Sex Machine" or any other of his funk monsters was not. Elvis went to Vegas but never became Vegas Elvis, and there was a lot of crazy rockabilly with a lot more punk in it than punk ever had, but the Rolling Stones never really happened so no really dirty 'rock' sound came to pass. There's also a lot more sleazy rhythm & blues and some sanctified gospel groups than there is corny Nashville C&W in my Fallout playlists, but hey, no Aretha. There's an incredible amount of great music on the 'lore-friendly' side of the divide, and choosing to stick by it doesn't make me a lore nazi or anything. It's just my taste. Here's some that really capture 'fallout' to me:



>https://www.youtube.com/watch?v=G-GVjOgVn3A



>https://www.youtube.com/watch?v=6G7yUzLRv-I



>https://www.youtube.com/watch?v=slFSzUzI8c8



>https://www.youtube.com/watch?v=g2W_YWsQ2qU



IIRC the rest of the song was mostly verses about having a girl in every town, hence the swagger. As always, they leave the ball in our court

Possibly the coolest song that ever made it to the fallout franchise.

And to think it's Dion

Read up a few posts. If the issue doesn't go away by updating NG, post a spunk log.

Pregnancy can cramp anybody's style, but breaking an entire game: unlikely. Let's have a look at your full LO - chances are you have too many mods.

Don't tell me what to say



"Hi!" Say it. Or else.



Dr. Sax is a character in a Kerouac poem - I can't remember which. Ghettofied the spelling, because I could.
